VECV

Engine Key Benefits

• Low Operating Cost :
• Remarkable Fuel Economy
• Very Economical Parts Prices
• In-Built Oil Cooler : Suitable for Continuous Operation and Lower Lubricating Oil Consumption.
• Piston Cooling Jet : Provide cooling to the piston at high temperatures.
• Extremely Low Vibration : Sculpted / Ribbed block for high rigidity which results in lower vibration.
• Valve Technology: For → Increased air-fuel intake, Efficient combustion, More power.

Alternator

• Self-excited, self-regulated,
  single bearing, brushless and continuous duty
• Voltage: 415/230 volts
• Power factor: 0.8
• Frequency: 50 Hz
• No. of phase: 3 phase/1 phase
• Construction: enclosure
• Protection: IP 23
• Voltage regulation: 1%
• Insulation class: H

Remote Monitoring

• 100% connected gensets for real time
  monitoring and higher uptime.*
• Eicher Gensets are enabled with remote monitoring system
  which shares Real Time Genset information and Location
  Services which can be accessed via mobile / computer.
  Critical indication alerts are sent to user mobile / computer.
  User can monitor real-time performance parameters of
  DG sets and also monitor any faults that may arise during
  operation.

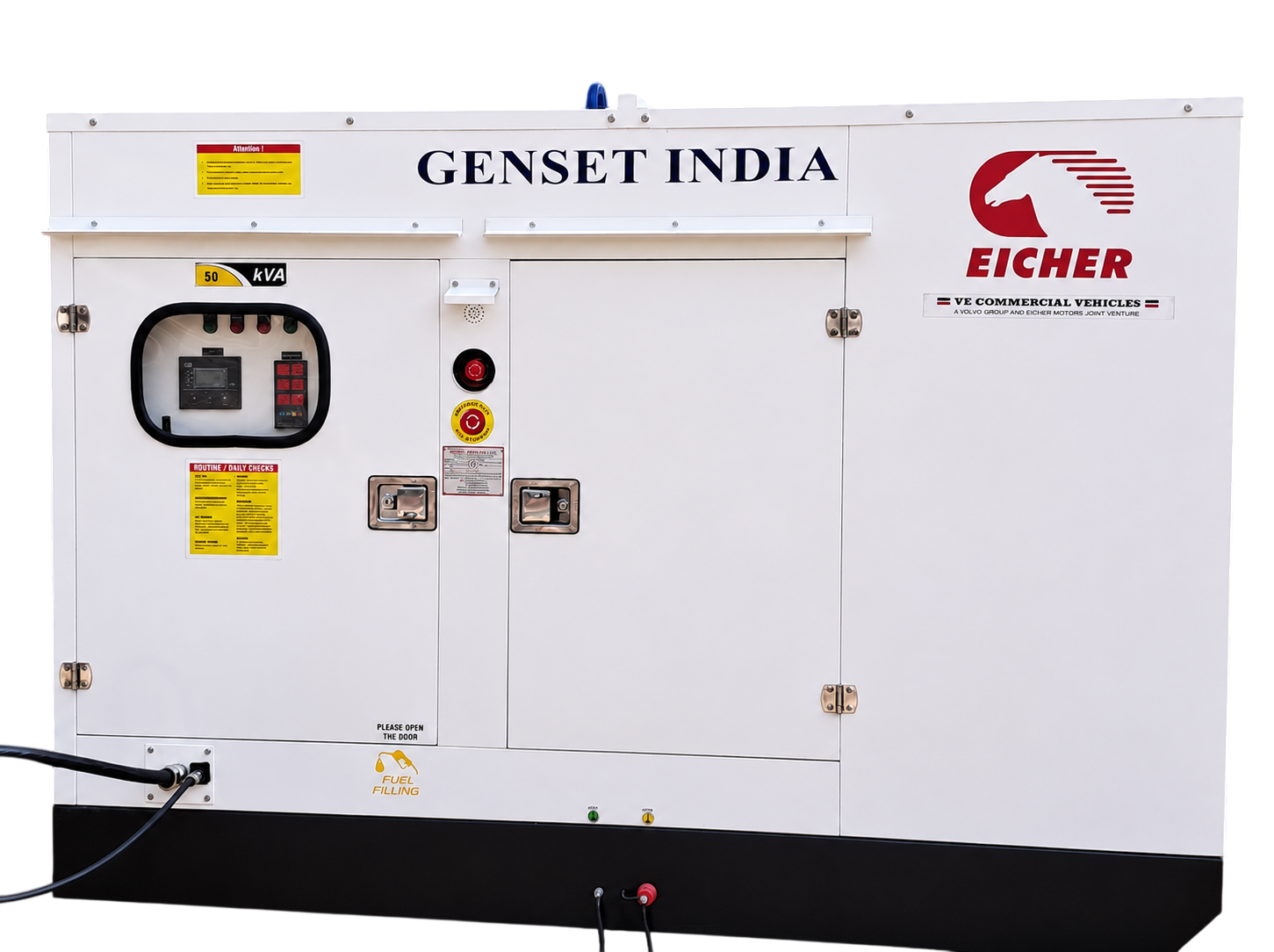

Control Panel

• Standard Manual Panel/AMF Panel
• Suitable rating 3 pole MCB/MCCB
• All critical parameters of engine and alternator are displayed on micro-processor based controller
• Dust & Vermin proof mounting inside acoustic enclosure

Integrated Engine Controller :

• It measures, monitors, controls & operates all the required
  electrical mechanical parameters.
• User friendly LCD display.
• Safeties with fault display.
• RS - 485 port for connectivity.
• Engine Safeties:High Water Temperature, Low Lub, Oil Pressure, Low Fuel Level, Low Battery Voltage.
• Alternator Safeties: Under Voltage, Under Frequency, Over Frequency, Overloading.

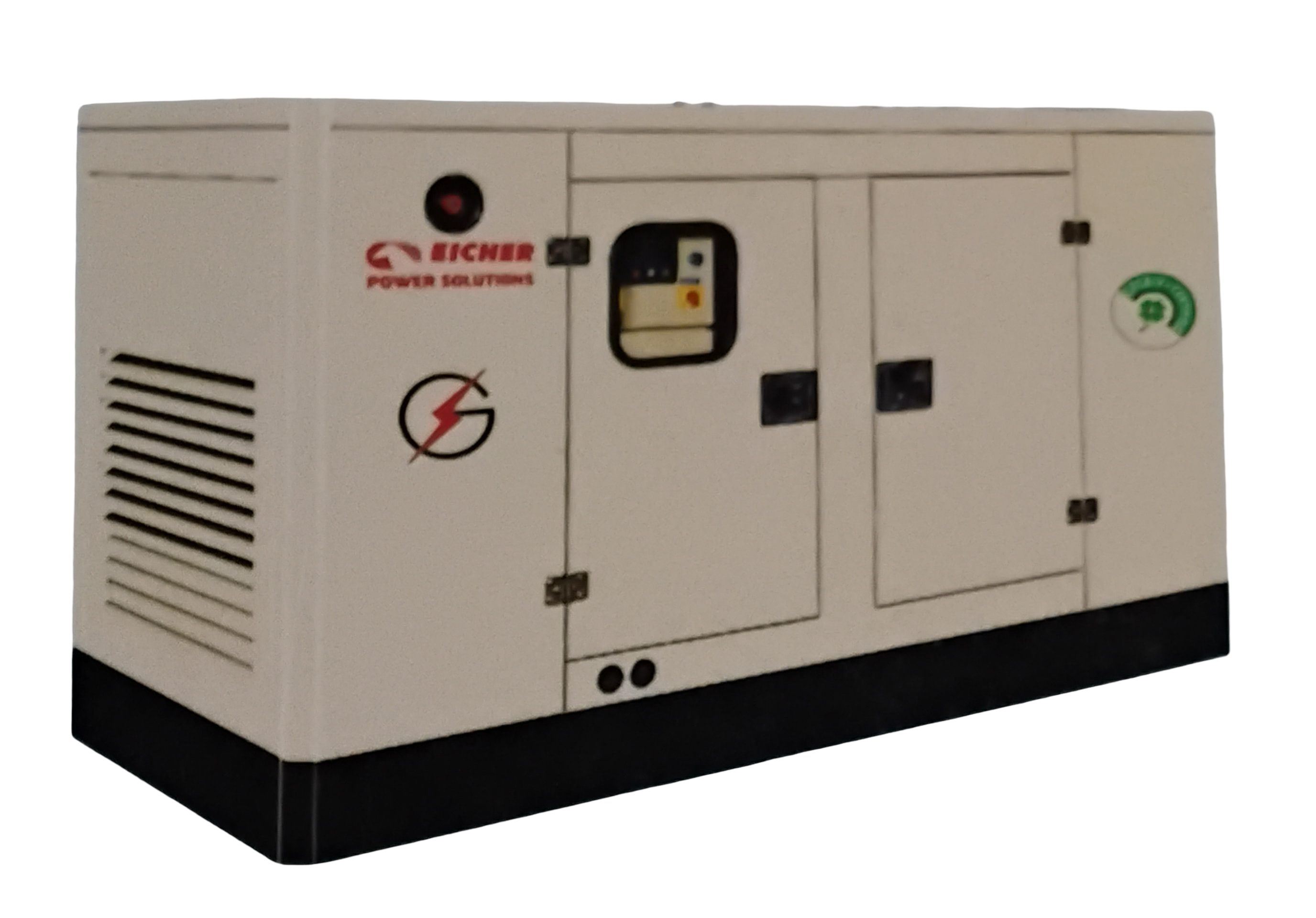

Acoustic Enclosure

• Noise level less than 75 dB(A) at a distance of
  1 meter under free field condition.
• Made up of high-quality TATA STEELIUM make
  CRCA sheet.
• Modular construction and good aesthetic.
• Sturdy designed built for fast and suitable and
  outdoor installation.
• Single Point Lifting Arrangement: Easy handling and avoid installation damages.
• 9 Tank Surface Pre-Treatment process which
  includes surface activation & phosphating
  process.
• Pure Polyester Powder used of Berger/Asian Paints for Powder Coating to ensure better finish and long lasting Acoustic Enclosure’s Colour.
